Production

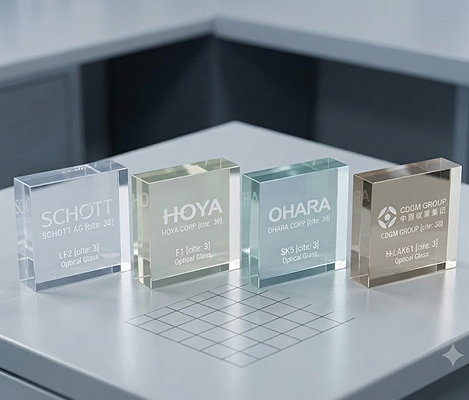

Optical Glass

We manufacture components using high-quality optical glasses from world-leading suppliers, including Schott, Ohara, Hoya, and CDGM. This ensures excellent homogeneity, precise refractive index, and maximum light transmission.

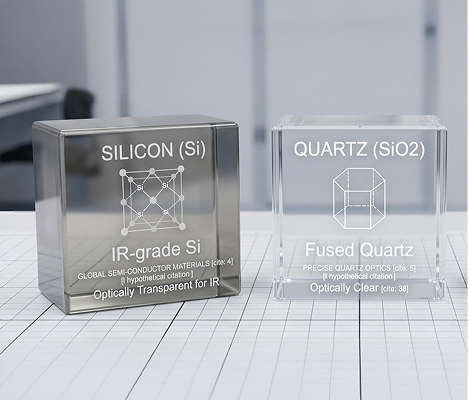

SILICON/ Fused Silica / Quartz

For applications requiring high thermal stability, exceptional UV/IR transmission, and high resistance to laser damage.

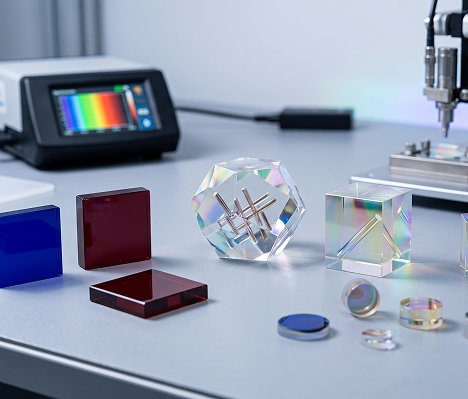

Specialty Materials

Processing of other specialty optical materials is available upon customer request and technical specification.

Production processes

1. Cutting & Grinding

Precision slicing, grinding and shaping of raw optical glass blocks into blanks.

2. Lapping & Fine Polishing

State-of-the-art grinding and polishing techniques to achieve nanometer-level surface roughness and precise shape tolerances.

3. Centering & Edging

Ensuring perfect alignment of the optical axis with the mechanical diameter (centering tolerances up to up to 0,002 mm).

4. Optical Coatings (Outsourced Specialty)

To provide complete, ready-to-use optical components, we collaborate with trusted and certified European partners specializing in advanced thin-film coatings (AR, BBAR, reflective, and custom coatings).

5. Cementing & Assembly

Precision cementing of doublets and triplets, and assembly of complex optical systems like objectives and objective lenses.

6. Quality Metrology & Inspection

100% rigorous quality inspection. Every shipment is accompanied by detailed quality inspection protocols under ISO 9001:2015.

Technical capabilities, dimensions, and tolerances

Parameter

Range and tolerance

Diameter:

Ø 0.5 to 10 mm (± 0.002 mm)

Center Thickness:

from 0.1 mm (± 0.002 mm)

Convex Radii:

1 mm to 50 mm

Concave Radii:

0.3 mm to -50 mm

Centering Tolerances:

up to 0,002 mm

Form Error (ISO 10110):

3 / 2 (0.3)

Surface Quality (ISO 10110):

5 / 3 × 0.010

Note: In addition to our standard dimensions and tolerances, other custom dimensions and specifications are available upon request. Please contact our engineering team to discuss your specific project requirements.

Do you have a specific project?

Our engineering team is ready to analyze your drawings and propose the most optimal manufacturing approach. We are open to custom dimensions, tighter tolerances, and collaborative projects.

Contact our engineers
